De specificaties van de AMD X4 845:

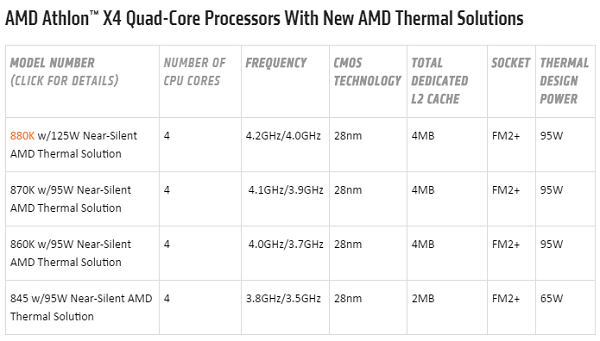

De AMD X4 845 is een Quad Core processor voor het FM2+ platform. Standaardsnelheid staat op 3,5GHz en hij boost tot 3,8Ghz. Bij een gebrek aan –k affix moeten we dus concluderen dat overclocken hier geen optie is. Opvallend is de kleinere hoeveelheid cache dan voorgangers, al zou de 845 deze efficiënter moeten benutten. Zoals genoemd is het een Carrizo chip met Excavator cores die uit de laptop serie van AMD komt, welke net als andere current-gen Athlons op 28nm is gebakken.

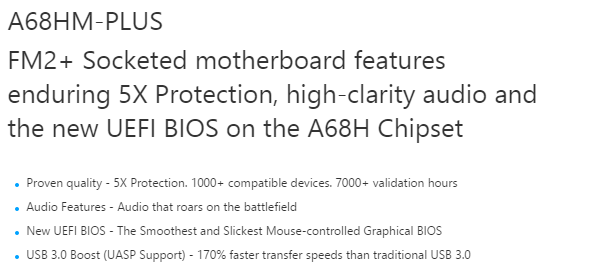

De specs van het Asus A68HM-Plus moederbord:


CPU
AMD Socket FM2+ Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list

Chipset
AMD A68H FCH (Bolton D2H)

Memory
2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Graphic
Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : HDMI/DVI/RGB ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz
– Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support *1

Expansion Slots
1 x PCIe 3.0/2.0 x16 *2
1 x PCIe 2.0 x1
1 x PCI

Storage
AMD A68H FCH (Bolton D2H) chipset :
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 10, JBOD

LAN
Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *3
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
– LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports
ASMedia® ASM1042 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
AMD A68H FCH (Bolton D2H) chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
AMD A68H FCH (Bolton D2H) chipset :
2 x USB 3.0 port(s) (2 at mid-board)

Special Features
ASUS 5X Protection :
– ASUS DIGI+ VRM – 3 + 2 Phase digital power design
– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
– ASUS ESD Guards – Enhanced ESD protection
– ASUS High-Quality 5K-Hour Solid Capacitors – 2.5x long lifespan with excellent durability
– ASUS Stainless Steel Back I/O – 3x more durable corrosion-resistant coating
ASUS EPU :
– EPU

ASUS Exclusive Features :
– AI Suite 3
– Ai Charger+
– Anti-Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2
– Push Notice
ASUS Q-Design :
– ASUS Q-Slot

Operating System Support
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® XP , 32bit
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

Accessories
User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD

BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Support Disc
Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)

Form Factor
mATX Form Factor
8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )

Note
*1: Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
*2: Only FM2+ Processors can support PCIe3.0.
*3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Als echt budget moederbord zien we niet heel veel wat er echt uit springt, maar veel zal de budget gamer ook niet nodig hebben. We zien ondersteuning voor maximaal 32GB DDR3 in de twee slots tezamen. Grafische mogelijkheden zijn in dit geval niet interessant gezien de CPU geen grafische capaciteit heeft, maar we kunnen wel een PCI-e 3.0 poort benutten voor onze grafische kaart.

4 SATA aansluitingen geven voldoende mogelijkheden waarbij zelfs RAID ondersteuning aanwezig is. We zien een Realtek Gigabit LAN poort, en een redelijk instap geluidschip: De ALC887 die overigens wel 7.1 geluid aan kan sturen.

USB connectiviteit komt in de vorm van vier USB poorten achterop, waarvan twee USB 3.0. USB 3.1 ontbreekt al zou Asus een A68HM-Plus/3.1 moeten uitbrengen die deze ondersteuning wel biedt. Naast de optie voor HDMI, DVI en VGA (in dit geval niet zinvol, maar bij een APU wel) zijn leuk, zo ook de ouderwetse ps/2 aansluitingen voor muis en toetsenbord. Compatibiliteit ten top.

Interne aansluitingen ook even in het overzicht, deze bekijken we straks nogmaals bij het uitpakken.
